Answer NexGen-Hybrid™ Insert
What's The Magic
The Answer NexGen-Hybrid™ is an excellent heat source for individual rooms or small homes. It conserves space by mounting almost flush to your existing masonry fireplace. This insert has a huge viewing area and sleek door design, along with a 1.4 cubic foot firebox that holds up to 18-inch logs. The Answer NexGen-Hybrid™ offers advanced features like a five-sided convection chamber to evenly distribute warm air and a single air control for easy regulation of burns and heat output as well as a removable flue collar for easy installation. The Answer’s standard bypass damper gives you full control over the flow of smoke inside this stove, eliminating smoky startups and reloads.

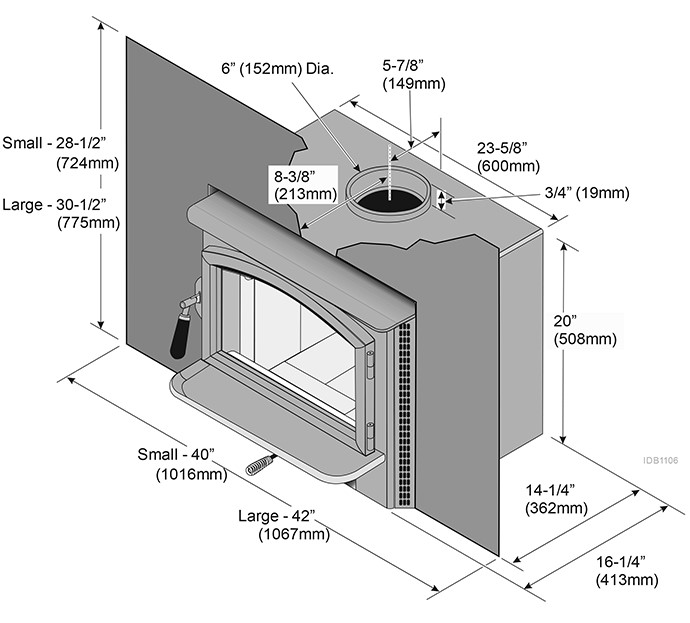

Specs
Heating Capacity*
Up to 1,200 Square Feet
Emissions
1.4 Grams Per Hour (CORD WOOD)
Cord Wood BTU’s
12,500 – 60,000
Crib Wood BTU’s
12,252 – 38,594
Maximum Burn Time
Up to 10 Hours
HHV Overall Efficiency***
Up to 80%
Glass Viewing Area
Ceramic Glass, 15-1/4” W x 9-1/4” H, 135 Sq. In.
Firebox Size
1.4 Cubic Feet
Maximum Log Size
18”
Weight
285 Pounds
Construction
3/16” to 1/2” Steel Plate
* Heating capacity may vary depending on degree of home insulation, floor plan and ambient temperature zone
of the area you live.
** EPA tests to determine BTU output are achieved with a single load of wood at each burn rate. At home, you are likely
to add more wood to your insert to maintain your desired comfort level. By the simple process of loading your fireplace
insert with additional wood, you could achieve up to a 20% higher heat output than established during EPA testing.
*** Overall efficiency as tested using B-415.1 using Cord Wood. LHV = Low Heat Value, HHV = High Heat Value.
